Brama Preamplifier
The Brama Preamplifier pairs a WE300B tube linestage with a pure signal path for exceptional tonal integrity, transparency, and musical connection.
Brama Preamplifier. Pure analog emotion
Every design decision begins with one clear goal: emotional connection.

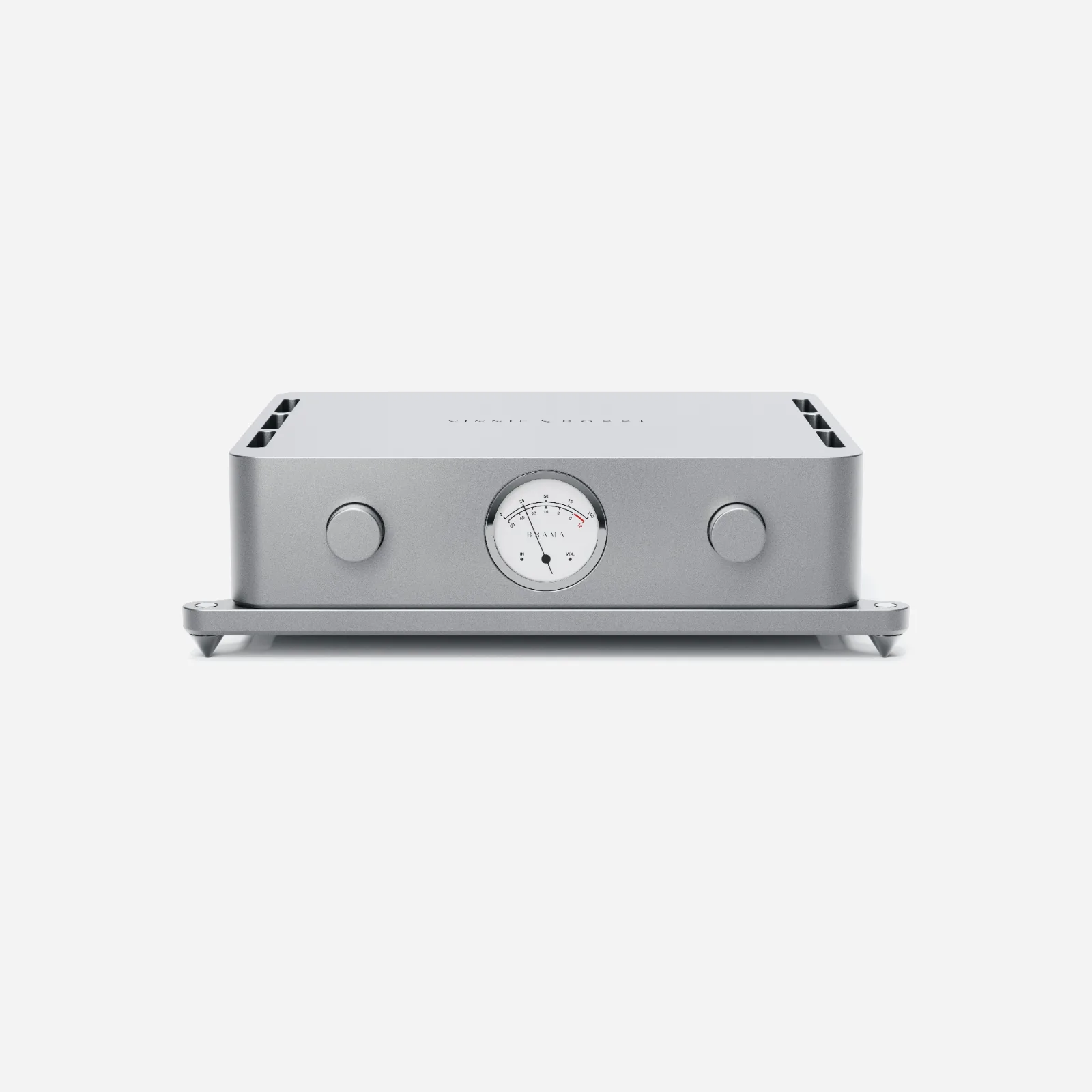

The front panel of the Brama Preamplifier is intentionally free of screens and distractions, favoring the gentle glow of a custom analog gauge and the tactile precision of Swiss rotary switches.
Brama’s timeless design invites you to slow down, listen deeply, and truly feel the music.
Control in its purest form
Milled from a solid block of aluminum and crowned with sapphire glass over its high resolution display, the Brama Remote is intuitive, tactile, and unmistakably refined. Bluetooth connectivity keeps you effortlessly in control without pulling you out of the moment.
Powering your passion
Brama’s custom power supply was designed to disappear. With ultra-low-noise, super-regulated linear outputs and lightning-fast transient response, it delivers pure, uncolored energy against an utterly silent background.
Encased in its own grounded chamber, it preserves every ounce of musical nuance, free from interference and compromise.
Simplicity - The ultimate sophistication
Elegance isn’t added; it’s revealed.

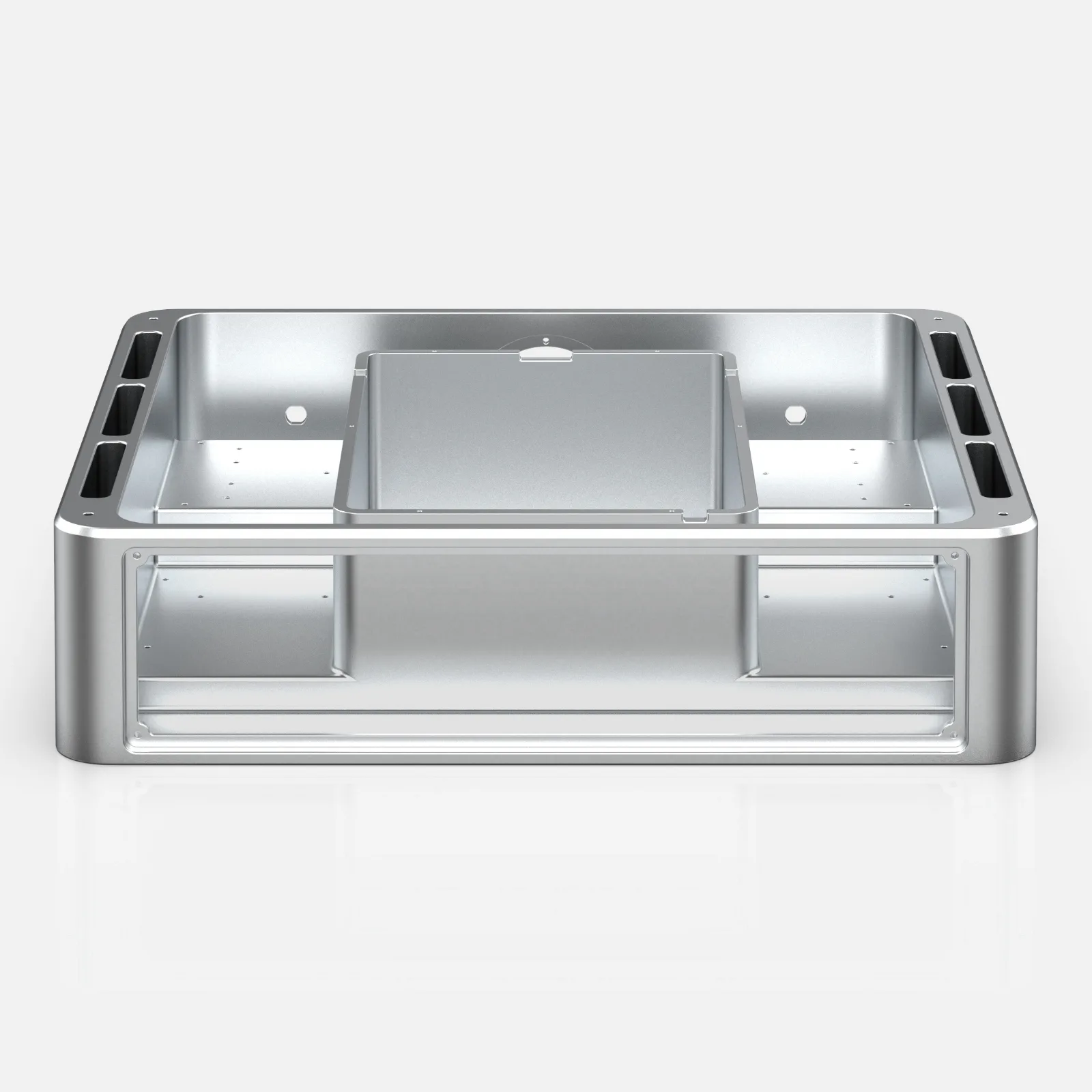

Machined from a single block of aluminum, Brama’s chassis provides complete EMI shielding, exceptional resonance control, and a quiet confidence that reflects its purpose.
Its timeless form disappears, both visually and sonically, so nothing stands between you and the music.
Technical Specifications
- AC Mains Input: 100–264V AC (50–60Hz)
- THD+N: < 0.1% (20Hz–20kHz)
- Frequency Response: 5Hz – 100kHz (±0.5dB)
- Signal-to-Noise Ratio: > 100dB
- Input Impedance: 20kΩ
- Gain Settings: 0dB, +6dB, +12dB
- Output Voltage: Up to 10Vrms
- Output Impedance: < 100Ω
- Triodes: Western Electric WE300B (matched pair)
- Fuse: 4A 250V (5×20mm), Fast Blow, Ceramic
- Power Consumption (Idle): 45W
- Product Weight: 46 lbs (20.9 kg)
- Product Dimensions (incl. knobs, jacks, feet): 18.7″ × 15″ × 5.5″ (475mm × 381mm × 140mm)
- Remote Dimensions: 6″ × 2″ × 0.5″ (150mm × 50mm × 12.5mm)
