Brama Monoblock Power Amplifier

The Brama Monoblock Amplifiers deliver commanding Class AB power, precision and purity, driving demanding speakers with effortless control and clarity.

Share this product

Brama Monoblock Power Amplifier. Nothing lost in translation.

With just three precision-matched lateral MOSFETs per rail, our output stage commands a robust 600 watts per channel into 4 ohms and 1200 watts into 2 ohms. This purist Class AB design unfolds every subtle detail and dynamic sweep with absolute grace and unwavering conviction, no matter the demands your loudspeakers place on it.

Effortless power delivery

Brama’s highly responsive 2400W power supply delivers unmatched speed, control, and clarity. No matter the quality of your AC mains, it supplies massive current with exceptionally low noise and impedance. Encased in a precision-machined aluminum chamber, fully isolated and grounded from all audio circuitry, it functions like a finely tuned engine – always ready and perfectly in command of the music.

An analog masterpiece

Clean, timeless, and deliberately free of digital displays or visual clutter, every detail of Brama reflects a purposeful dedication to the analog spirit.

Its bespoke output power gauge, featuring a precision air-core movement, is framed in sapphire glass with a polished stainless-steel bezel – a quiet nod to Brama’s deep commitment to craftsmanship and design purity.

The fusion of form and function

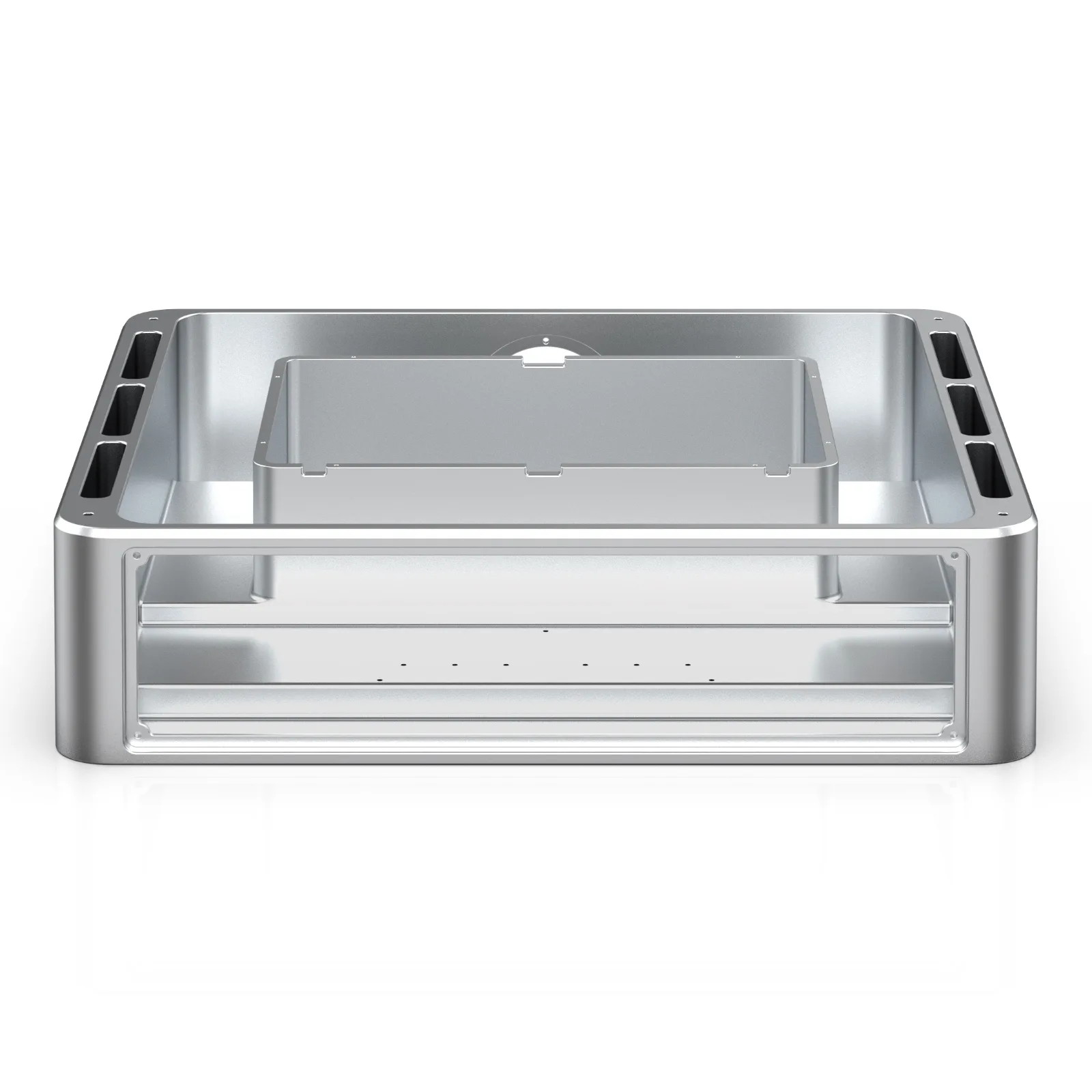

Uncommon even among cost-no-object designs, the Brama Monoblock’s body is precision-machined from a solid block of aluminum. This provides exceptional resonance control, complete EMI shielding, and superior heat dissipation for lasting reliability.

Its seamless construction enhances the amplifier’s aesthetic, appealing to audiophiles who appreciate sophistication and elegance.

Technical Specifications

  • AC Mains Input: 100–264V AC (50–60Hz)
  • Output Power: 300W RMS into 8 ohms / 600W RMS into 4 ohms / 1200W RMS into 2 ohms
  • THD+N: < 0.1% (20Hz–20kHz)
  • Frequency Response: 5Hz – 100kHz (±0.5dB)
  • Signal-to-Noise Ratio: > 100dB
  • Input Impedance: 20kΩ
  • Gain: 22dB
  • Speaker Output Impedance: < 0.01 ohms
  • Fuse: 16A 250V (5×20mm), Fast Blow, Ceramic Type
  • Power Consumption (Idle): 50W
  • Product Weight: 45 lbs. (20.5 kg)
  • Product Dimensions (incl. knobs, jacks, feet): 18.7″ × 16″ × 5.5″ (475mm × 406mm × 140mm)
